Name: 1.80×8.5mm Right Cut RH Cutter, SMT Depaneling Machine Bit
Brand: INFINITE AUTOMATION CO ., LIMITED
SKU: SMT剥離用1.8×8.5mm右勝手カットカッター
Availability: InStock

家へ > 製品 > smtの予備品 >

1.80×8.5mm Right Cut RH Cutter, SMT Depaneling Machine Bit

起源の場所:

中国

ブランド名:

Other

モデル番号:

SMT剥離用1.8×8.5mm右勝手カットカッター

連絡ください

引金を求めてください

1.80×8.5mm Right Cut RH Cutter, SMT Depaneling Machine Bit

製品詳細

支払いと送料の条件

最小注文数量

価格

USD

パッケージの詳細

カートンボックス

受渡し時間

3～5営業日

支払条件

L/C、D/A、D/P、T/T、ウェスタンユニオン

パナソニック 20W サーボモーター CM402 N510042738AA / MTNM000236AA

最高の価格を入手する

パナソニック電磁弁 N510055093AA

最高の価格を入手する

連絡ください

(86)-13823274872

rosy@pcbsmtmachine.com

86-755-23115005

今連絡してください

製品説明

1.Product Introduction

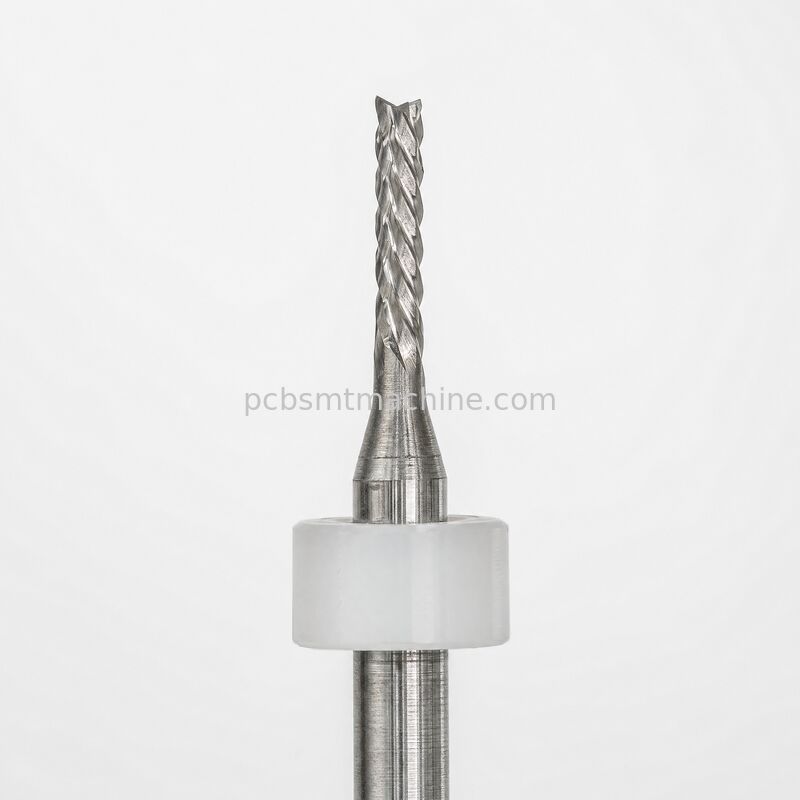

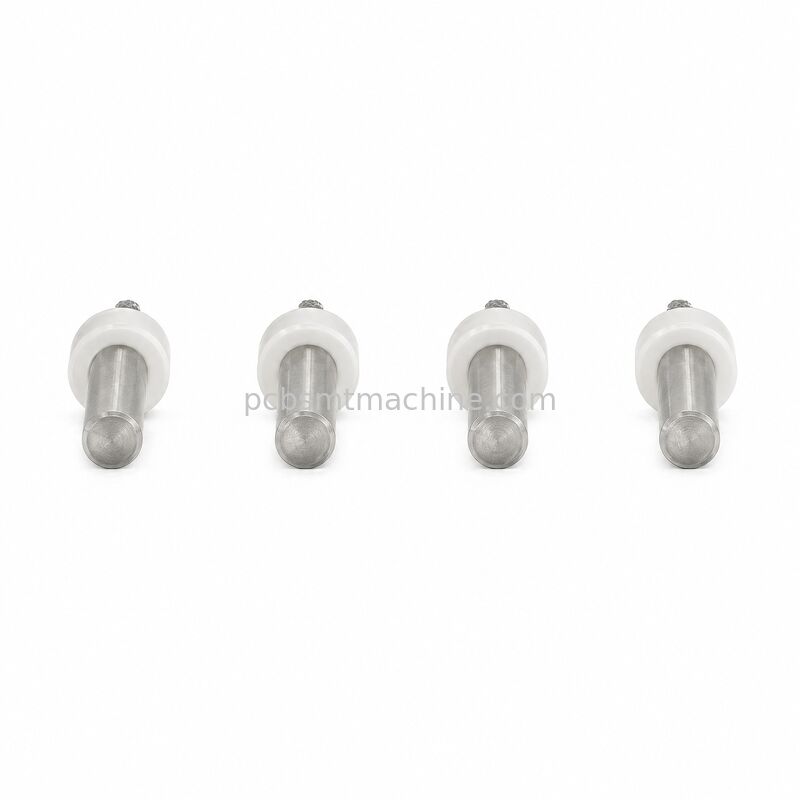

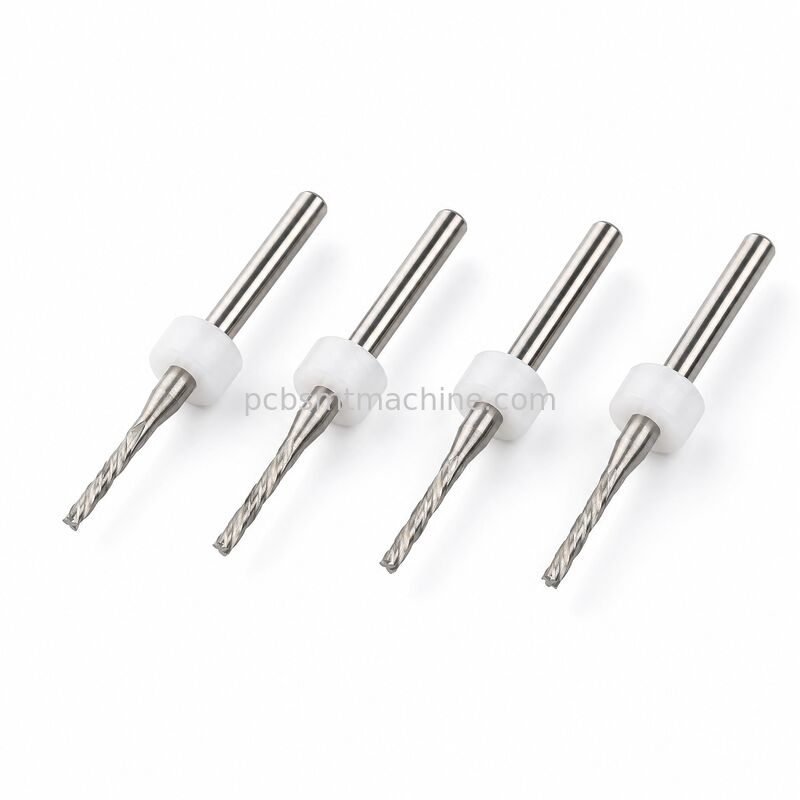

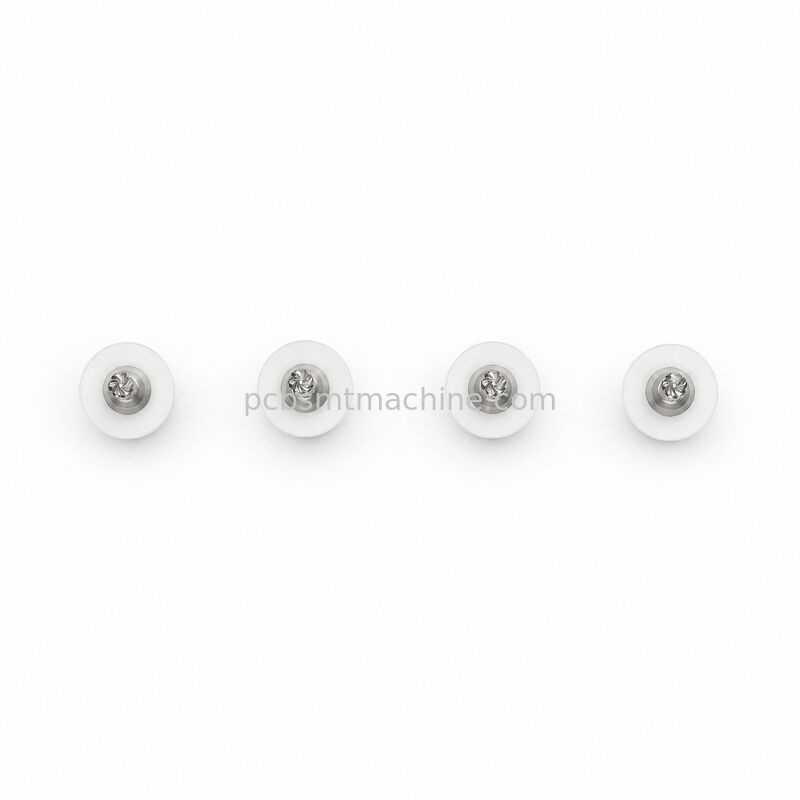

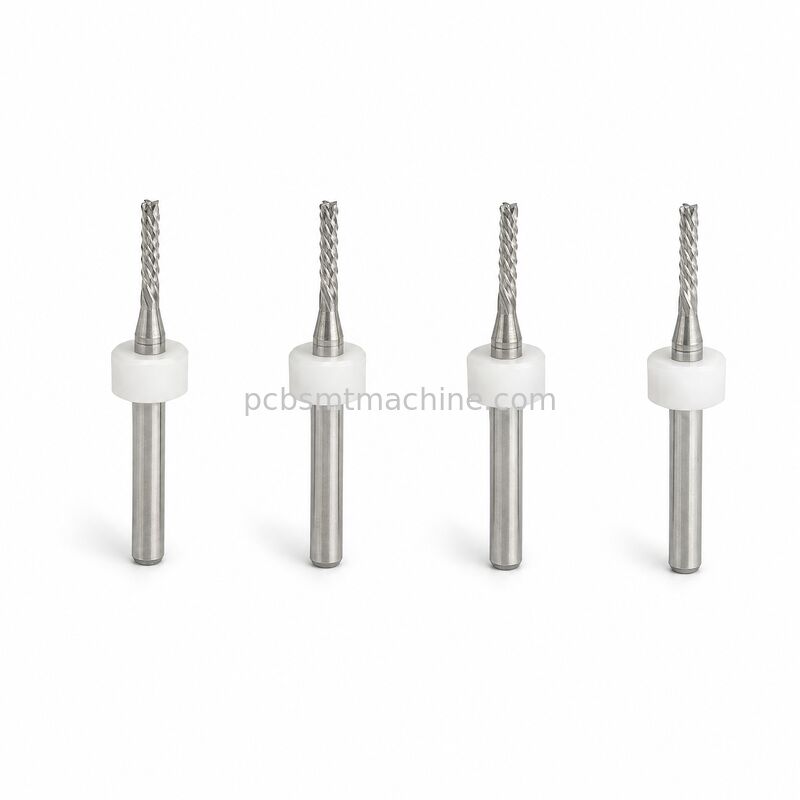

RTX-1.8×8.5 SMT depaneling router bit is manufactured from high-grade tungsten carbide with mirror finishing. It delivers high hardness, outstanding abrasion resistance and stable cutting performance, resisting chipping and fracture during continuous PCB depaneling.

Compatible with SMT depaneling machines and CNC cutting equipment, it is suitable for machining FR-4, CEM-3, copper clad laminate, fiberglass, carbon fiber, engineering plastic and composite materials.

Adopted 5-axis CNC precision grinding, the cutter edge remains sharp with neat, burr-free cutting. The chamfered shank enables secure clamping and non-slip operation.

Both Right-Hand Spiral (RH) and Left-Hand Spiral (LH) are available for customized order, matching different spindle rotation and production processes.

2.Product Parameters

Item	Specification
Model	RTX-1.8×8.5
Material	Tungsten Carbide Cobalt Alloy
Cutting Diameter	1.80mm
Flute Length	8.5mm
Standard Spiral	Right-Hand Spiral (RH)
Custom Spiral	Right-Hand / Left-Hand Spiral (RH/LH) Customizable
Craft	5-Axis CNC Grinding, Mirror Polishing
Application	SMT Depaneling Machine, CNC Router
Processable Materials	PCB, FR-4, CEM-3, Fiberglass, Carbon Fiber, Composite Board

3.Product Advantages

Integrated solid carbide body, long service life for high-volume SMT production.
Precise 5-axis grinding, clean cutting and effective prevention of board edge chipping.
Standard chamfered shank, easy mounting and strong compatibility with mainstream depaneling devices.
Provide RH/LH spiral customization, bulk supply and full production line tool supporting solution.

FAQ

Can you customize RH and LH spiral router bits?

Absolutely. We offer custom service for Right-Hand Spiral and Left-Hand Spiral cutters to fit your machine spindle direction.
Is it applicable for long-term mass depaneling?

Solid carbide material and premium grinding craft ensure high durability and stable performance for daily mass production.
Does the shank slip at high speed?

Optimized chamfered shank design ensures firm clamping, keeping stable operation during high-speed cutting.
